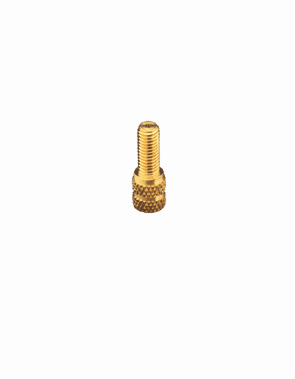

Molded Type Studs

$0.00

SKU: N/A Category:

Description

Thread Spec. per MIL-S-7742
Brass per ASTM-B-16/16M-19
300 Series: QQ-A-764B ASTM A581/A582-12/A484-18A
Dimensional Limits plus or minus .003 unless specified.

American Part NumberThread SizeA*B
±.005		CDG**Knurl
TPI
STD2562-56.156.468.141.031.28140
STD4404-40.188.531.171.031.28140
STD6326-32.218.656.201.062.37530
STD8328-32.250.750.225.062.43830
STD102410-24.281.812.259.062.46830
STD103210-32.281.812.259.062.48630
STD250201/4"-20.344.937.321.094.56320
STD250281/4"-28.344.937.321.094.56320
STD312185/16"-18.4381.062.403.094.62520
STD312245/16"-24.4381.062.403.094.62520
STD375163/8"-16.5001.187.465.094.68720
STD375243/8"-24.5001.187.465.094.68720
* = Material size before Knurl
** = Other lengths available in the "G" dimension.

Other thread lengths available, special quote.
Metric Part NumberThread SizeA*B
±.005		CDG**Knurl
TPI
STDM3M3.188.531.171.031.28140
STDM4M4.250.750.225.062.43830
STDM5M5.281.812.259.062.46830
STDM6M6.344.937.321.094.56320
STDM8M8.4381.062.403.094.62520
STDM10M10.5001.187.465.094.68720
* = Material size before Knurl
** = Other lengths available in the "G" dimension.

Other thread lengths available, special quote.

Additional information

Units

American, Metric
Material

Brass, Stainless Steel
Thread Size

2-56, 4-40, 6-32, 8-32, 10-24, 10-32, 1/4''20, 1/4''28, 5/16''18, 5/16''24, 3/8''16, 3/8''24, M2x0.4, M3x0.5, M3.5×0.6, M4x0.7, M5x0.8, M6x1.0, M8x1.25, M10x1.5
