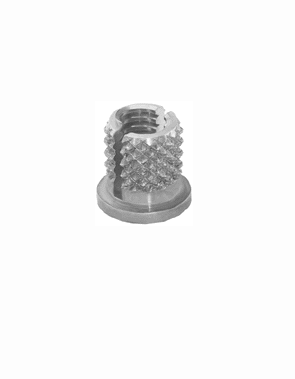

Post Molded Threaded Inserts with Head (BPH)
$0.00
Description
All dimensions are in inches
Thread Spec. Per MIL-S-7742
(Collapsed slot and burrs may cause prevailing torque while thread accepts Class 3A/4h Screw).
Brass per ASTM-B-16/16M-19
Also available with reverse head.
(Add R to end of Part # – Example BPHR1032)
| Part Number | A Dia. ±.005 |
B ±.005 |
C ±.005 |
D Body Dia. ±.005 |
Hole Size in Material | |
|---|---|---|---|---|---|---|
| Min. Wall Thickness |
Hole Dia. +.004 / -.000 |
|||||
| BPH440 | .219 | .020 | .186 | .156 | .126 | .156 |
| BPH632 | .250 | .026 | .249 | .186 | .142 | .188 |
| BPH832 | .281 | .032 | .312 | .217 | .157 | .219 |
| BPH1032 | .312 | .039 | .371 | .249 | .189 | .250 |
| BPH1024 | .312 | .039 | .371 | .249 | .189 | .250 |
| BPH25020 | .375 | .049 | .497 | .311 | .236 | .312 |
| All dimensions are in inches. | ||||||
Additional information
| Units | American, Metric |
|---|---|
| Head Type | Reverse, Standard |
| Thread Size | 4-40, 6-32, 8-32, 10-24, 10-32, 1/4''20, M3x0.5, M3.5×0.6, M4x0.7, M5x0.8, M6x1.0 |
| Material | Brass |
