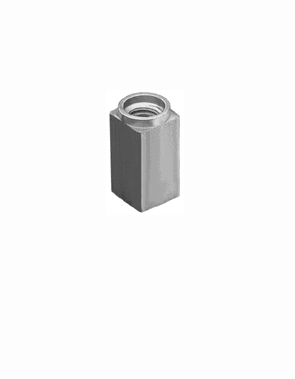

Swage Type Square Full Thread Insert 8 Thread

$0.00

SKU: N/A Category:

Description

Thread Spec per MIL-S-7742
Brass per ASTM-B-16/16M-19
300 Series: QQ-A-764B ASTM A581/A582-12/A484-18A
Dimension Limits plus or minus .003 unless specified
For number of threads, insert prefix number in prefix position
For material designation insert “B” Brass or “C“ Stainless after prefix
For “D“ dimension (Shank Length) insert dash number in suffix position.

Part Number Metric Equiv. A C
+.001 -.002		 E
±.005		 F “D” Dimension=Shank Length
.020 .030 .040 .050 .060 .070 .080 .100
SQ256 SQM2 .125 .125 .030 .093 -2 -3 -4 -5 -6
SQ440 SQM3 .156 .156 .030 .120 -2 -3 -4 -5 -6
SQ632 SQM3.5 .188 .188 .040 .152 -2 -3 -4 -5 -6 -7 -8
SQ832 SQM4 .218 .218 .040 .177 -2 -3 -4 -5 -6 -7 -8
SQ1024 – .250 .250 .050 .201 -2 -3 -4 -5 -6 -7 -8 -10
SQ1032 SQM5 .250 .250 .050 .201 -2 -3 -4 -5 -6 -7 -8 -10
SQ25020 SQM6 .312 .312 .050 .265 -2 -3 -4 -5 -6 -7 -8 -10
SQ25028 – .312 .312 .050 .265 -2 -3 -4 -5 -6 -7 -8 -10





Prefix= Min. Number Of Threads
Thread Size 6 8 10 12
B=±.005
256 / M2 .219 .281 .344 .375
440 / M3 .312 .375 .437 .484
632 / M3.5 .375 .438 .515 .563
832 / M4 .375 .438 .515 .563
1024 / – .438 .563 .656 .750
1032 / M5 .438 .563 .563 .563
25020/ M6 .531 .656 .812 .937
25028 / – .431 .656 .656 .656

Additional information

Units

American, Metric
Material

Brass, Stainless Steel
Thread Size

2-56, 4-40, 6-32, 8-32, 10-24, 10-32, 1/4"20, 1/4"28, M6x1.0, M2x0.4, M3x0.5, M3.5×0.6, M4x0.7, M5x0.8
Shank Length

2 (0.02), 3 (0.03), 4 (0.04), 5 (0.05), 6 (0.06), 7 (0.07), 8 (0.08), 10 (0.10)
