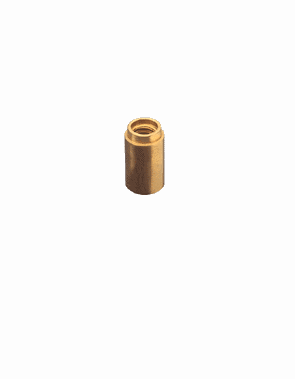

Swage Type Thread Insert 8 Thread

$0.00

SKU: N/A Category:

Description

Thread Spec per MIL-S-7742
Brass per ASTM-B-16/16M-19
300 Series: QQ-A-764B ASTM A581/A582-12/A484-18A
Dimension Limits plus or minus .003 unless specified
For number of threads, insert prefix number in prefix position
For material designation insert “B” Brass or “C“ Stainless after prefix
For “D“ dimension (Shank Length) insert dash number in suffix position.

Number
Threads Prefix		 Part
Number		 Metric Equiv. A
±.005		 B C
+.001 -.002		 E
±.005		 F “D” Dimension= Shank Length
.020 .030 .040 .050 .060 .070 .080 .100
6 Thd S256 M2x0.4 .156 .219 .125 .030 .096 -2 -3 -4 -5 -6
8 Thd .281
6 Thd S440 M3x0.5 .188 .312 .156 .030 .128 -2 -3 -4 -5 -6
8 Thd .375
6 Thd S632 M3.5×0.6 .218 .375 .188 .040 .152 -2 -3 -4 -5 -6 -7 -8
8 Thd .438
6 Thd S832 M4x0.7 .250 .375 .213 .040 .177 -2 -3 -4 -5 -6 -7 -8
8 Thd .438
6 Thd S1024 – .312 .438 .249 .050 .201 -2 -3 -4 -5 -6 -7 -8 -10
8 Thd .563
6 Thd S1032 M5x0.8 .312 .438 .249 .050 .201 -2 -3 -4 -5 -6 -7 -8 -10
8 Thd .563
6 Thd S25020 M6x1.0 .375 .531 .311 .050 .265 -2 -3 -4 -5 -6 -7 -8 -10
8 Thd .656
6 Thd S25028 – .375 .531 .311 .050 .265 -2 -3 -4 -5 -6 -7 -8 -10
8 Thd .656
6 Thd S31218 M8x1.25 .500 .625 .405 .060 .328 -2 -3 -4 -5 -6 -7 -8 -10
8 Thd .750
6 Thd S31224 – .500 .500 .405 .060 .328 -2 -3 -4 -5 -6 -7 -8 -10
8 Thd .563
6 Thd S37516 M10x1.5 .563 .718 .468 .060 .390 -2 -3 -4 -5 -6 -7 -8 -10
8 Thd .875
6 Thd S37524 – .563 .500 .468 .060 .390 -2 -3 -4 -5 -6 -7 -8 -10
8 Thd .563
For number of threads and material designation: insert 6 for 6 threads and 8 for 8 threads.
Insert “B” for Brass and “C” for Stainless Steel.
Number
Threads Prefix		 Part
Number		 Metric Equiv. A B
±.005		 C
+.001 -.002		 E
±.005		 F “D” Dimension= Shank Length
.020 .030 .040 .050 .060 .070 .080 .100
10 Thd S256 M2x0.4 .156 .344 .125 .030 .096 -2 -3 -4 -5 -6
12 Thd .375
10 Thd S440 M3x0.5 .188 .437 .156 .030 .128 -2 -3 -4 -5 -6
12 Thd .484
10 Thd S632 M3.5×0.6 .218 .515 .188 .040 .152 -2 -3 -4 -5 -6 -7 -8
12 Thd .563
10 Thd S832 M4x0.7 .250 .515 .213 .040 .177 -2 -3 -4 -5 -6 -7 -8
12 Thd .563
10 Thd S1024 – .312 .656 .249 .050 .201 -2 -3 -4 -5 -6 -7 -8 -10
12 Thd .750
10Thd S1032 M5x0.8 .312 .563 .249 .050 .201 -2 -3 -4 -5 -6 -7 -8 -10
12 Thd .563
10 Thd S25020 M6x1.0 .375 .812 .311 .050 .265 -2 -3 -4 -5 -6 -7 -8 -10
12 Thd .937
10 Thd S25028 – .375 .656 .311 .050 .265 -2 -3 -4 -5 -6 -7 -8 -10
12 Thd .750
10 Thd S31218 M8x1.25 .500 .875 .405 .060 .328 -2 -3 -4 -5 -6 -7 -8 -10
12 Thd 1.000
10 Thd S31224 – .500 .656 .405 .060 .328 -2 -3 -4 -5 -6 -7 -8 -10
12 Thd .750
10 Thd S37516 M10x1.5 .563 1.000 .468 .060 .390 -2 -3 -4 -5 -6 -7 -8 -10
12 Thd 1.125
10 Thd S37524 – .563 .656 .468 .060 .390 -2 -3 -4 -5 -6 -7 -8 -10
12 Thd .750
For number of threads and material designation: insert 10 for 10 threads and 12 for 12 threads.
Insert “B” for Brass and “C” for Stainless Steel.

Additional information

Units

American, Metric
Material

Brass, Stainless Steel
Thread Size

2-56, 4-40, 6-32, 8-32, 10-24, 10-32, 1/4''20, 1/4''28, 5/16''18, 5/16''24, 3/8''16, 3/8''24, M2x0.4, M3x0.5, M3.5×0.6, M4x0.7, M5x0.8, M6x1.0, M8x1.25, M10x1.5
Shank Length

2 (0.02), 3 (0.03), 4 (0.04), 5 (0.05), 6 (0.06), 7 (0.07), 8 (0.08), 10 (0.10)
