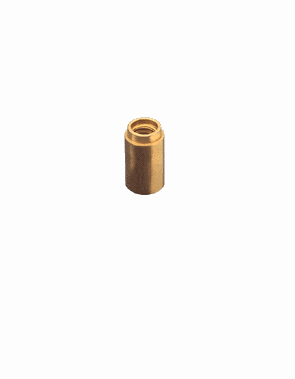

Swage Type Thread Self Locking Insert 12 Thread
$0.00
Description
Thread Spec. Per MIL-S-7742
300 Series: QQ-A-764B ASTM A581/A582-12/A484-18A
Dimensional Limits plus or minus .003 unless specified
Also Available with Dry Film Lube per MIL-L-0046010 Rev. E Type l & AS5272
Thread Locking Feature per NASM-25027C
(B) Dash Number ±.005, Passivate Per AMS2700
For number of threads, insert prefix number in prefix position
For “D” dimension (Shank Length), insert dash number in suffix position
| Part Number | Metric Equiv. | A | C +.001 -.002 |
E ±.005 |
F | “D” Dimension=Shank Length | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| .020 | .030 | .040 | .050 | .060 | .070 | .080 | .100 | ||||||
| CSL256 | CSLM2 | .156 | .125 | .030 | .096 | -2 | -3 | -4 | -5 | -6 | |||
| CSL440 | CSLM3 | .188 | .156 | .030 | .128 | -2 | -3 | -4 | -5 | -6 | |||
| CSL632 | CSLM3.5 | .218 | .188 | .040 | .152 | -2 | -3 | -4 | -5 | -6 | -7 | -8 | |
| CSL832 | CSLM4 | .250 | .213 | .040 | .177 | -2 | -3 | -4 | -5 | -6 | -7 | -8 | |
| CSL1024 | – | .312 | .249 | .050 | .201 | -2 | -3 | -4 | -5 | -6 | -7 | -8 | -10 |
| CSL1032 | CSLM5 | .312 | .249 | .050 | .201 | -2 | -3 | -4 | -5 | -6 | -7 | -8 | -10 |
| Prefix= Min. Number Of Threads | ||||
|---|---|---|---|---|
| Thread Size | 6 | 8 | 10 | 12 |
| B=±.005 | ||||
| 256 / M2 | N/A | .281 | .344 | .375 |
| 440 / M3 | .312 | .375 | .437 | .484 |
| 632 / M3.5 | .375 | .438 | .515 | .563 |
| 832 / M4 | .375 | .438 | .515 | .563 |
| 1024 / – | .438 | .563 | .656 | .750 |
| 1032 / M5 | .438 | .563 | .563 | .563 |
Additional information
| Units | American, Metric |
|---|---|
| Material | Stainless Steel |
| Thread Size | 2-56, 4-40, 6-32, 8-32, 10-24, 10-32, M2x0.4, M3x0.5, M3.5×0.6, M4x0.7, M5x0.8 |
| Shank Length | 2 (0.02), 3 (0.03), 4 (0.04), 5 (0.05), 6 (0.06), 7 (0.07), 8 (0.08), 10 (0.10) |
